100 Watt 120V Transformer | Includes 3 Mod-Lite Pool Lights | 3ML-PLX-PL100

The new Mod-Lite from S.R. Smith with PowerPass Wireless technology offers a revolutionary new twist on LED pool lighting. PoolLUX Plus combines power and lighting control in one simple system.

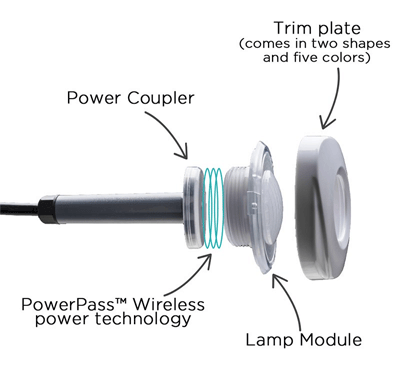

Mod-Lite® is an LED light that blends modular design with wireless power to deliver unmatched flexibility, convenience, safety and savings. PowerPass™ technology allows power to flow directly to the wireless LED lamp module, without a physical connection to power; making installation faster, safer and more efficient; and replacement and winterization a snap.

S.R.Smith PoolLUX Plus Lighting Control System	$1600.00
SHIPPING INCLUDED WITH POOL KIT PURCHASE

FEATURES:

12VAC 7 Watt LED light for gunite, vinyl liner, and fiberglass pools and spas
Superior lens geometry distributes light in an optimum way to avoid “hot spots” on the pool bottom. Light intensity and color are distributed more uniformly throughout your pool
Pool lens can be rotated to 180 degrees to provide wide beam pattern (standard) or narrow beam pattern.
Low profile wireless lamp
Designed for use with standard 1.5″ wall fittings and conduit down to 0.75″
Available in lengths of 80′ or 150′, as single units or in bulk packs
Advanced color functionality with poolLUX Premier: 49 color variations and 4 levels of dimming via wireless remote.

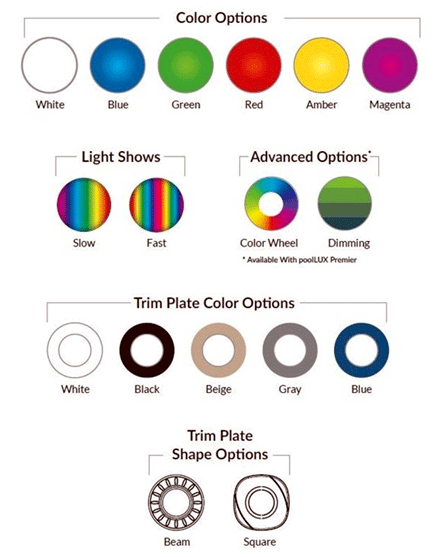

6 colors (white, blue, green, red, amber, magenta), and 2 light shows (fast/slow)
5 colored trim plates in 2 different shapes (square and round) for a total of 10 options for maximum customization
3-year warranty
ETL Listed — Conforms to UL676, certified to CSA C22.2 #89

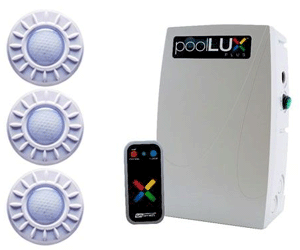

Kit Includes:

poolLUX Plus Transformer, 100W
Three Mod-Lite 80′ cord, RGB LED pool lights
Remote control

Mod-Lite Features:

12VAC energy efficient 7-Watt LED light for gunite, vinyl liner, and fiberglass pools and spas
Low profile wireless lamp
Simple installation and service
Sealed for maximum safety and reliability
Designed for use with standard 1.5″ wall fittings and conduit down to 0.75″
Color functions:

12V controls: six colors (white, blue, green, red, amber, magenta), and two light shows (fast or slow)

Five colored trim plates in two different shapes (square and round) for a total of 10 options for maximum customization
ETL Listed – Conforms to UL676, certified to CSA C22.2 #89

poolLUX Plus Transformer Features:

60W or 100W low voltage transformer options
External on/off control switch
Extended range (100' Line of Sight) Wireless remote with one-touch color sync for S.R.Smith LED lights –

S.R.Smith LED lights feature six colors and two shows off switch increases convenience and can save on electrician costs
Compatible with other 12VAC power toggle LED lights
Convenient terminal strip wiring – no wire nuts required
Oversized wiring space with convenient terminal strip connections
Internal self-resetting thermal fuse to protect against overheating conditions
Fast acting replaceable current fuse for safety enhancing short circuit protection
Accessible low voltage 12VAC and 13VAC wiring terminals for standard or extended wiring runs
Corrosion resistant (NEMA 3R) and sound dampening housing (quiet operation)
Four low-voltage and four line-voltage combination knockouts (3/4″ or 1″) plus two special use knockouts
ETL Listed – Conforms to UL 379 (Pool, Spa and Fountain Power Unit Standard)
Certified to CSA C22.2#218.1
